Antena SIRIO

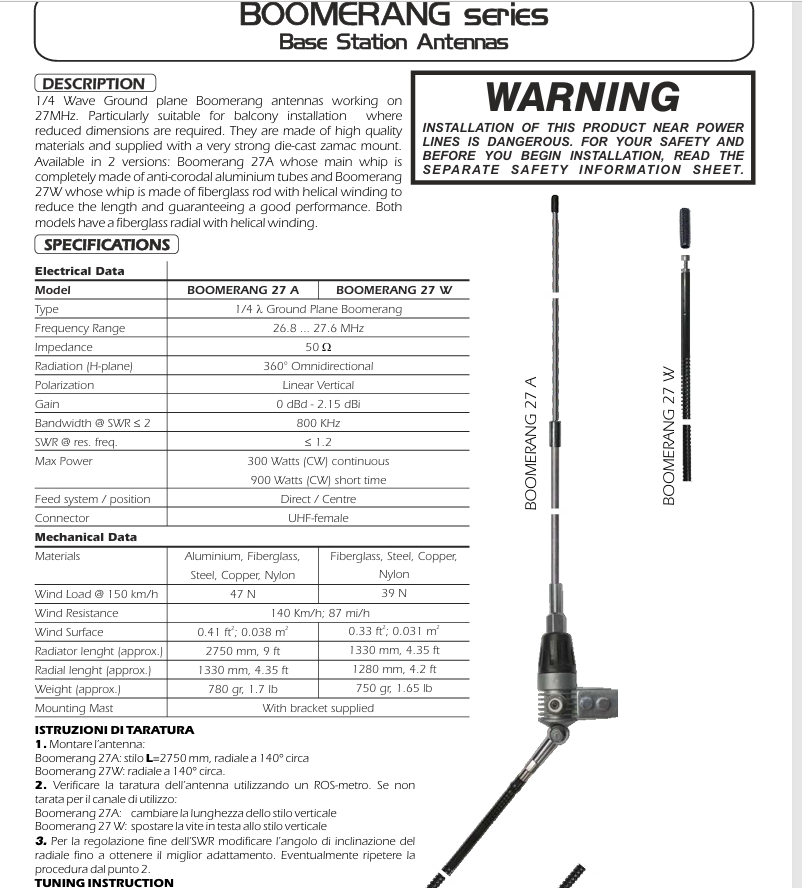

BOOMMERANG A Modelo Imagem 2
Type:
1/4 λ ground plane boomerang
Radiation:
Omnidirectional
Polarization:
Linear vertical
Frequency range:
26.8 ... 27.6 MHz Tunable
Systems:
10m-HAM
Gain:
0 dBd, 2.15 dBi
Bandwidth:
≥ 800KHz @ SWR ≤ 2
Max Power:
300 Watts (CW) continuous
900 Watts (CW) short time
Connector:
UHF-female (SO-239)
Materials:
Aluminium, Copper, Galvanized steel, Fiberglass, Nylon
Height (approx):
BOOMERANG A:
3600 mm / 11.81 ft
Weight (approx):
BOOMERANG A:
780 gr / 1.72 lb
BOOMERANG W Modelo Imagem 1
P/N: 2101115.00
BOOMERANG W
Electrical Data:
Type:
1/4 λ ground plane boomerang
Radiation:
Omnidirectional
Polarization:
Linear vertical
Frequency range:
26.8 ... 27.6 MHz Tunable
Systems:
10m-HAM
Gain:
0 dBd, 2.15 dBi
Bandwidth:
≥ 800KHz @ SWR ≤ 2
Max Power:
300 Watts (CW) continuous
900 Watts (CW) short time
Connector:
UHF-female (SO-239)
Height (approx):
BOOMERANG W:
2180 mm / 7.15 ft
Weight (approx):
BOOMERANG W:
750 gr / 1.65 lb
