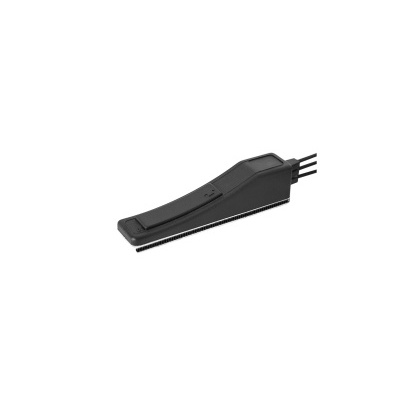

LPM-005
Planar antenna stick-on GPS / 5G / WLAN
Specifications
Mounting: Adhesive
Base Dimension: L: 123 · W:25 · H: 27 mm
Material: Polyamide 6
Colour: Black
Temperature: -30ºC - +80ºC
Technical Data WIRELESS LAN
Antenna Type: Dipole Antenna
Frequency Range: 2400 ÷ 2485 MHz
Impedance: 50 Ω
Max. Power: 10 W
V.S.W.R.: Less than 2.5
Polarization: Horizontal or Vertical
Emission: Omnidirectional
Gain: 3.40 dBi
Cable lenght: RG 174 mm.3000±20
Connector: RP-SMA male
Technical Data 5G
Antenna Type: 1/4 1 Mobile Antenna
ISM: 868 MHz
GSM: 900 MHz
DCS: 1800 MHz
PCS: 1900 MHz
3G: UMTS 2.1 GHz
WIFI / BLUETOOTH: 2.4 GHz
LTE: 698-860/2500-2710 MHz
5G: 3400-3800 MHz
Impedance: 50 Ω
Max. Power: 10 W
Return loss: > 12 dB
V.S.W.R: Less than 2.0
V.S.W.R 5G: Less than 3.0
Polarization: Horizontal or Vertical
Emission: Omnidirectional
Gain: 2.14 dBi
Cable lenght: RG 174 mm.3000±20
Connector: SMA m.
Technical Data GPS
Antenna Type: Active Planar Patch Ant.
Impedance: 50 Ω
Center Frequency: 1575 & 1600 MHz
Bandwidth: ± 10 MHz
V.S.W.R: Less than 2.0
Polarization: RHCP
Supply Voltage: 3 ÷ 5 V
Current Absorption: 10 ÷ 30 mA
Power gain: 17 ± 2 dB
Noise figure: < 1.5 dB
Temperature: -30ºC - +80ºC
Cable lenght: RG 174 mm. 3000±20
Connector: SMC male
