COLDRE SOB MEDIDA PARA JOPIX CB-514

Name: COLDRE SOB MEDIDA PARA JOPIX CB-514
Brand: JOPIX - Rádio CB AM/FM
SKU: 2367
Price: 12.3 EUR
Availability: InStock

12,30 €

IVA incluído.

DESCRIÇÃO: __________

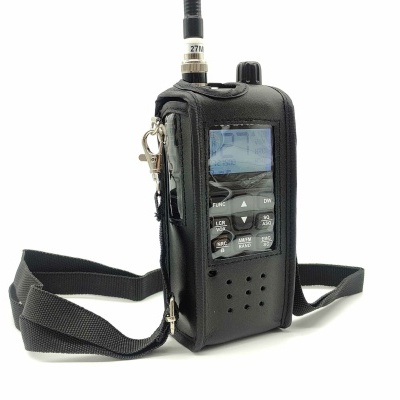

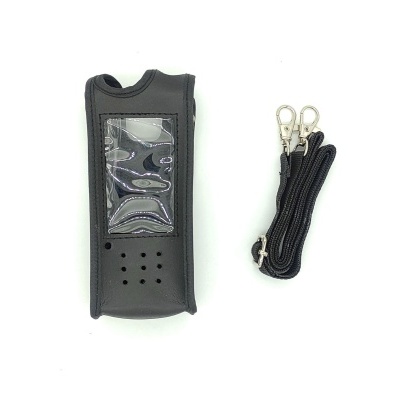

Capa de couro sintético sob medida para o walkie CB Jopix CB-514. Pode ser transportado com o clipe do walkie ou com a pulseira banderole.

CARACTERÍSTICAS
Ele fecha com dois botões de pressão na parte de trás
Fornecido com fita de banderole ajustável de 75 – 140 cm
Também compatível com PNI Escort HP-82, Thunderpole T-X
CONTEÚDO
Caixa macia
Fita de banderole ajustável
* O walkie-talkie não é entregue com o produto.

Supply
:
7.4 V (Handheld configuration) / 13.2 V (Mobile configuration)
Number of channels
:
40
AM
:

FM
:

Channel selector
:
up / down
Volume
:
Volume adjustment and ON/OFF
RF Power
:

Squelch
:
Manual squelch
ASC
:

Display
:
LCD multifunction
Frequencies display
:

S-meter
:
Digital
Vox
:

Tone
:

Filter ANL
:

Filter NB
:

Filter HI-CUT
:

Compander
:

Noise Gate
:

Scan
:

F / Menu function key
:

Key Beep
:

Roger beep
:

Dual watch
:

Key locking
:

Preset channel
:
EMG (personalizable)
CTCSS
:
38 tones
DCS
:
104 codes
Microphone plug
:
jack Ø2.5
External Vox microphone jack
:

External loudspeaker jack
:

Size
:
152 (H) x 66,5 (L) x 37 (P) mm
Weight
:
305 g with battery

Technical characteristics
General
Number of channels
:
40
Modulation modes
:
AM/FM
Frequency ranges
:
from 26,965 MHz to 27,405 MHz
CTCSS
:
38 tones
DCS
:
104 codes
Antenna impedance
:
50 ohms
Power supply
:
7.4 V (Handheld configuration) / 13.2 V (Mobile configuration)
Size
:
152 (H) x 66,5 (L) x 37 (P) mm
Weight
:
305 g with battery
Loud speaker
:
8 ohms, 1 W
Transmission
Frequency allowance
:
+/- 200 Hz
Carrier power
:
4 W AM / 4 W FM
Transmission interference
:
inferior to 4 nW (- 54 dBm)
Audio response
:
300 Hz to 3 KHz
Emitted power in the adj. channel
:
inferior to 20 μW
Microphone sensitivity
:
7 mV
Drain
:
1,8 A max.
Modulated signal distortion
:
2 %
Reception
Maxi. sensitivity at 20 dB sinad
:
0.5 μV - 113 dBm AM / 0.35 μV - 116 dBm FM
Frequency response
:
300 Hz to 3 kHz
Adjacent channel selectivity
:
60 dB
Maximum audio power
:
1 W
Squelch sensitivity
:
min. 0,2 μV - 120 dBm / max. 1 mV - 47 dBm
Frequency image rejection rate
:
60 dB
Intermediate frequency rej. rate
:
70 dB
Drain
:
Mode ECO
